Linear Floor Drains (DUFR: Series)

Product Overview

The Linear Floor Drain is a stylish addition to any single plane slope shower installation. Engineered for luxury bathroom and commercial applications, this drain combines professional-grade performance with extensive customization options. Select from seven drain sizes, two flange configurations, three grate styles, and three finish options to create the perfect drain for your project.

Key Features

• Heavy-duty 304 stainless steel construction
• Textured flange ensures tight waterproof membrane seal
• Available in 12 sizes: 30", 32", 34", 36", 40", 42", 44", 48", 54", 60", 66", 72"
• Two flange options: Backwall Return Flange Only or Three Side Return Flange
• Three grate styles: Square Perforated Grate, Tile-In Grate, Wedge Wire Grate
• Three finish options: Black Powder Coated, Brushed Stainless Steel, Polished Stainless Steel
• Single slope to drain design
• Removable grate for easy cleaning and maintenance
• Shallow V-bottom design for optimal water flow
• 2-7/16" (61.13mm) outlet size
• SANS10400 compliant 75mm water seal
• Excellent corrosion resistance

Design & Performance

Built from heavy-duty 304 stainless steel, the Linear Floor Drain is constructed to withstand years of use in both residential and commercial shower environments. The textured flange creates a tight waterproof membrane seal between the flange and membrane, ensuring longevity and protecting your home's structure from water damage. The innovative shallow V-bottom design directs water efficiently toward the drain outlet, preventing pooling and ensuring reliable drainage performance.

The drain accommodates any size format tile or stone, making it a perfect fit for luxury shower installations regardless of your tile selection. Whether you're using large contemporary tiles or traditional smaller formats, this drain adapts to your design vision without compromise.

Customization Options

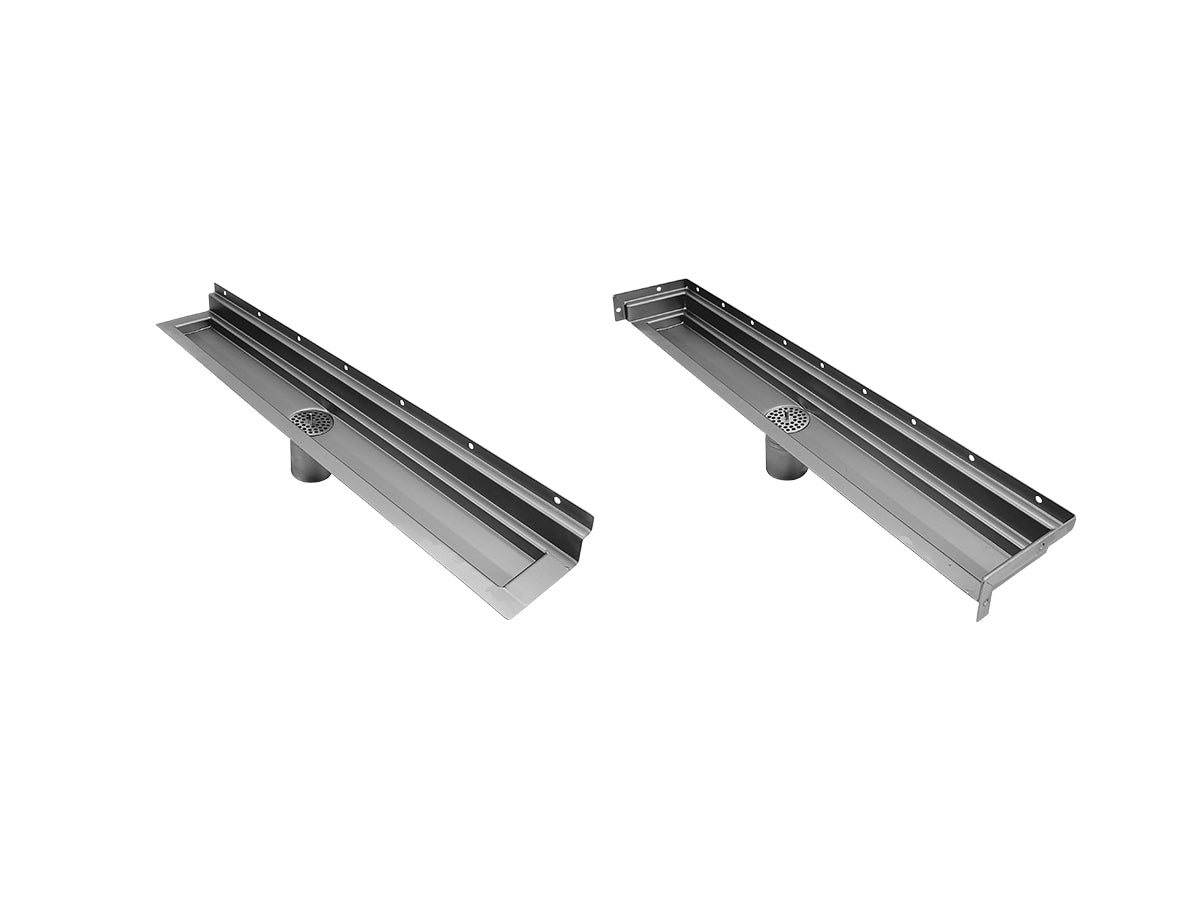

The DUFR Series offers complete customization to match your specific project needs. Choose from seven sizes ranging from 30 to 72 inches to fit your exact floor dimensions. Select your flange configuration based on installation requirements—Backwall Return Flange Only for standard installations, or Three Side Return Flange for wall-to-wall applications with 1/8" to 3/8" thick wall tiles that eliminate the tile strip between the back wall and drain.

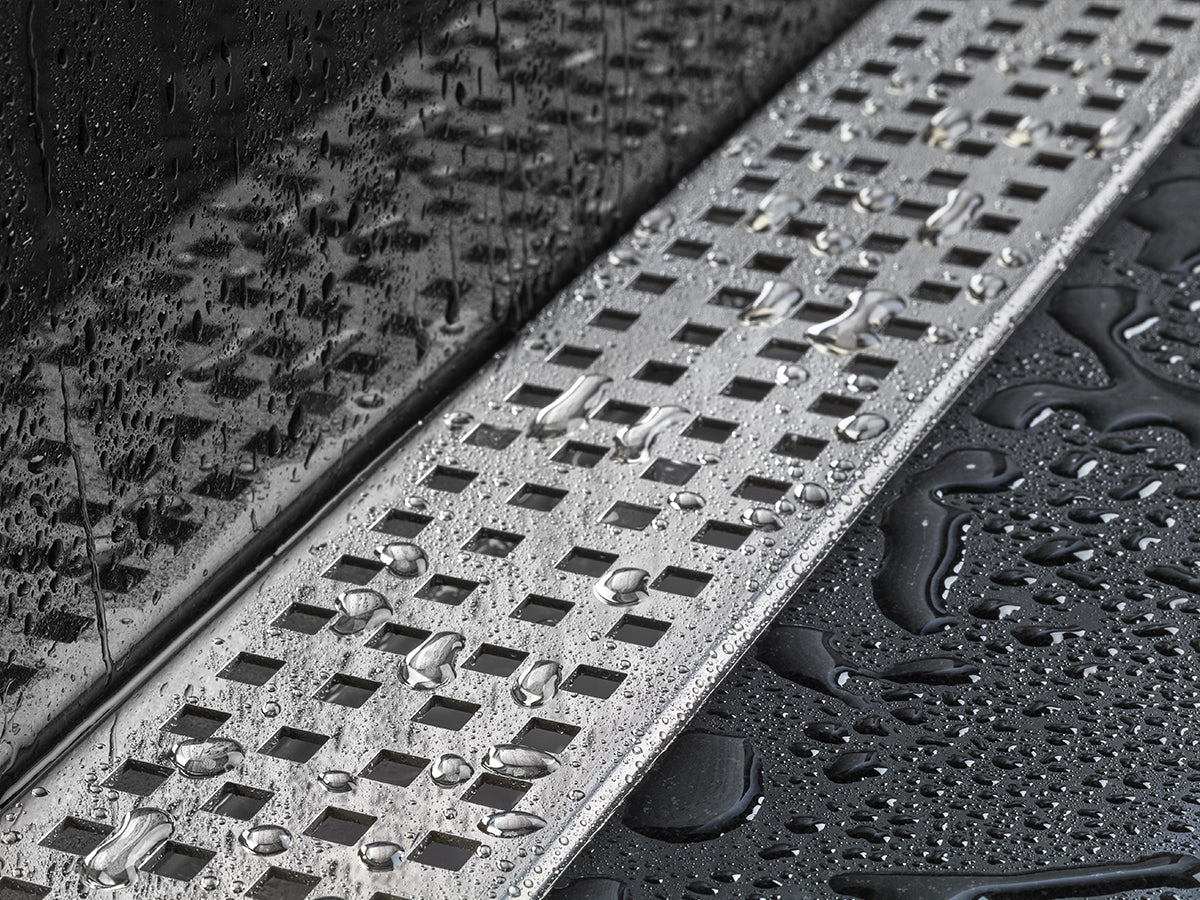

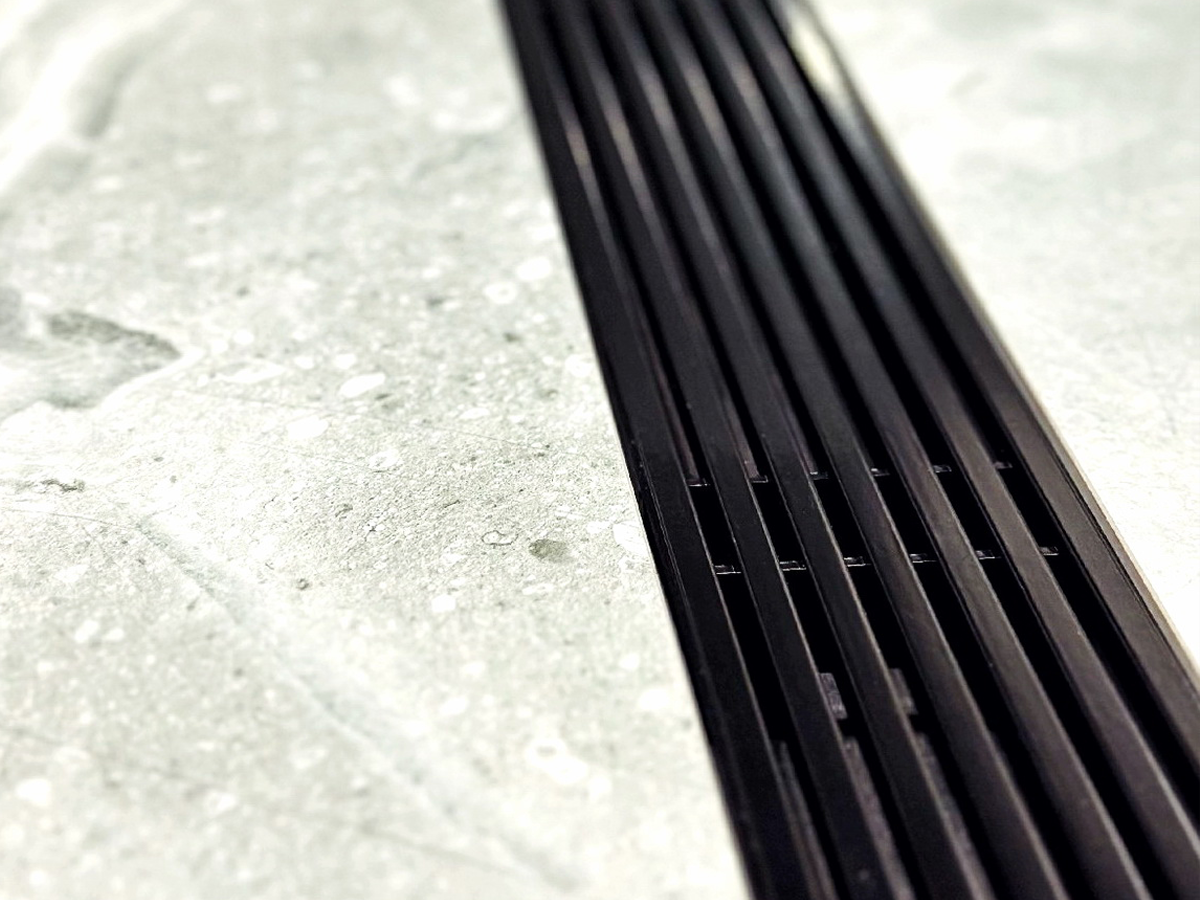

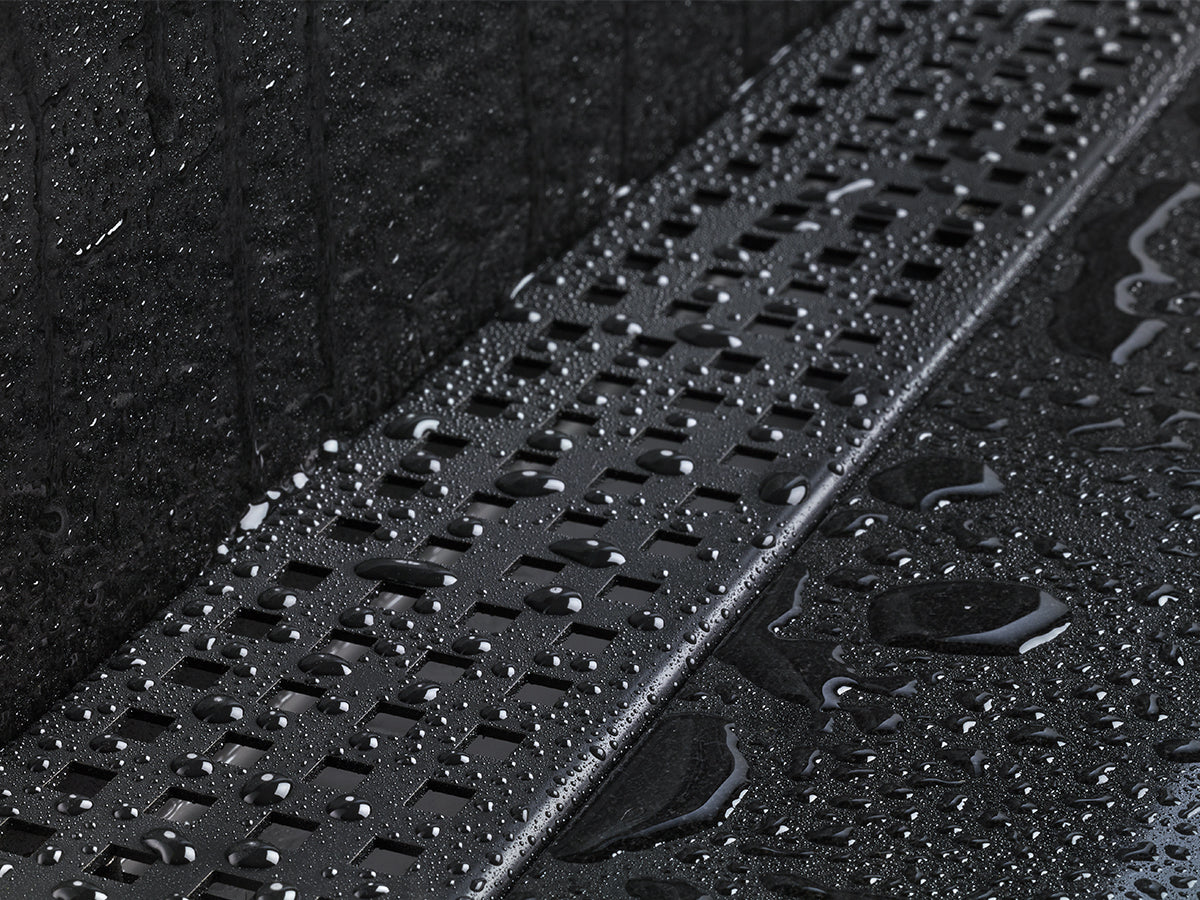

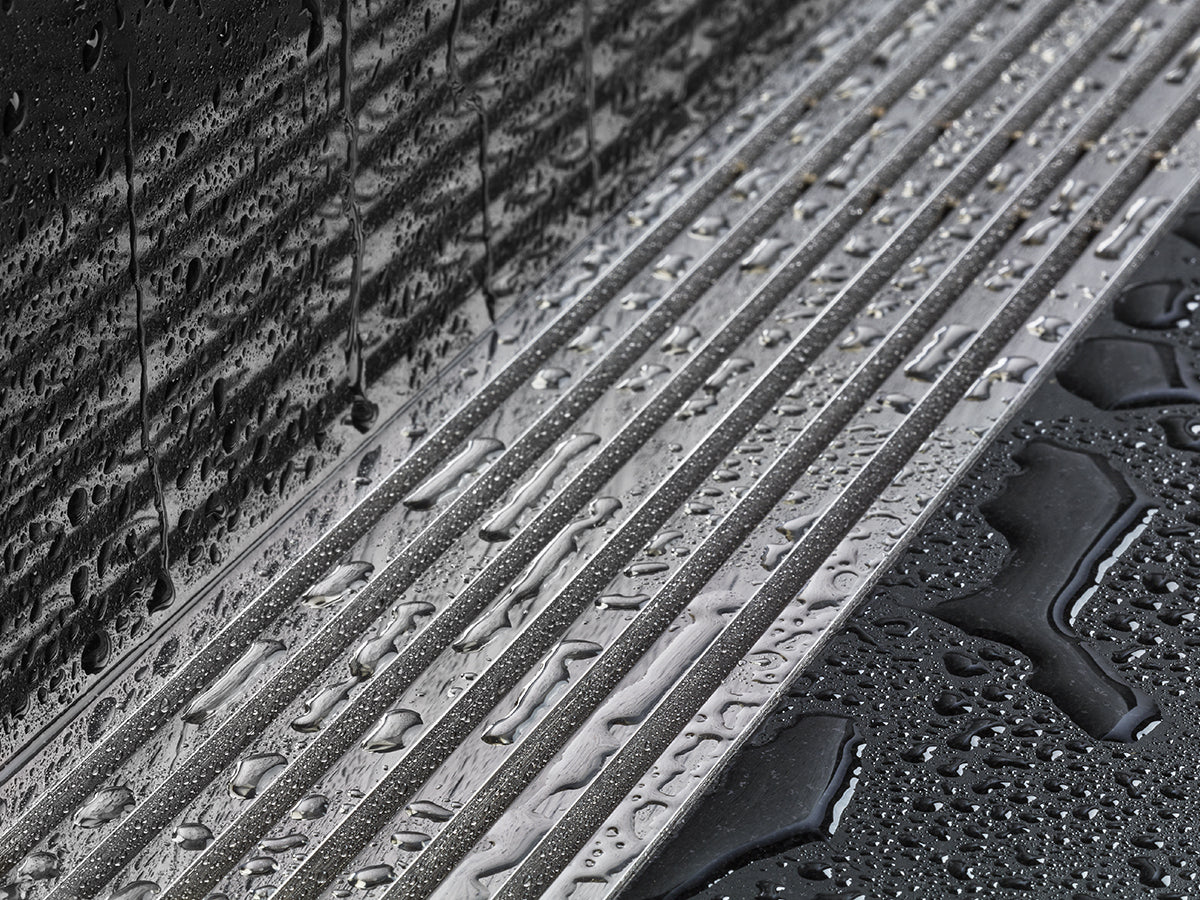

Pick from three grate styles to match your aesthetic preferences. The Square Perforated Grate offers classic functionality, the Tile-In Grate allows your floor tile to extend across the drain for a seamless look, and the Wedge Wire Grate provides industrial-style appeal with superior drainage capability. Complete your selection with one of three finishes: Black Powder Coated for modern contrast, Brushed Stainless Steel for contemporary subtlety, or Polished Stainless Steel for luxury shine.

Installation & Compatibility

The Linear Floor Drain installs on concrete, exterior grade plywood for interior use, cement backer board, cement mortar bed, or shower pan substrates. The textured flange works with standard waterproofing membranes, creating a secure seal that prevents water infiltration behind walls and protects your home's structural integrity.

What's Included

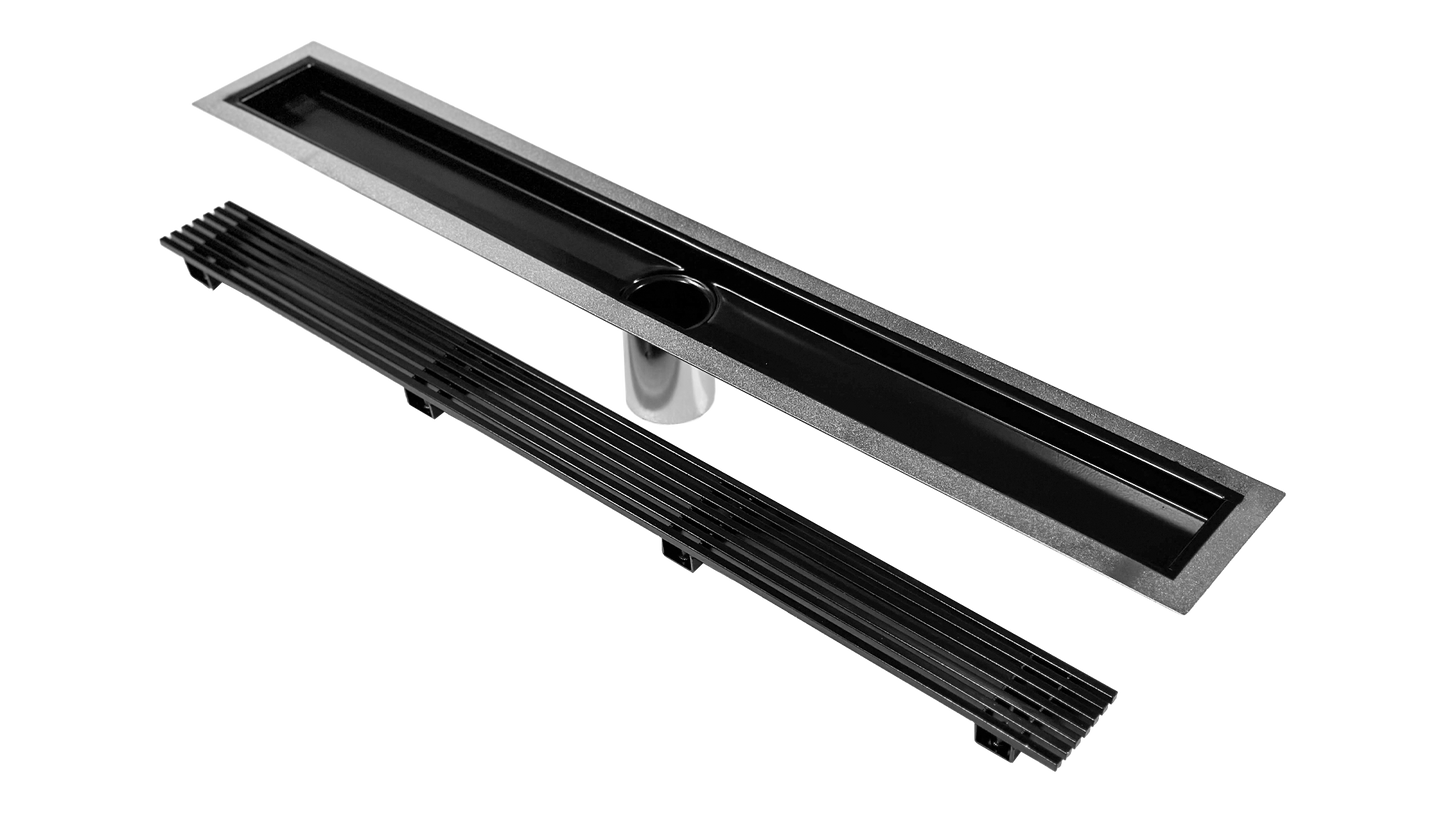

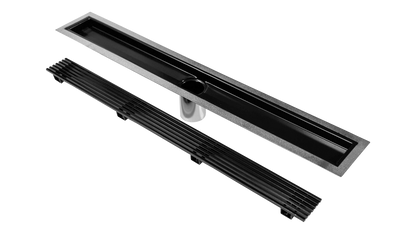

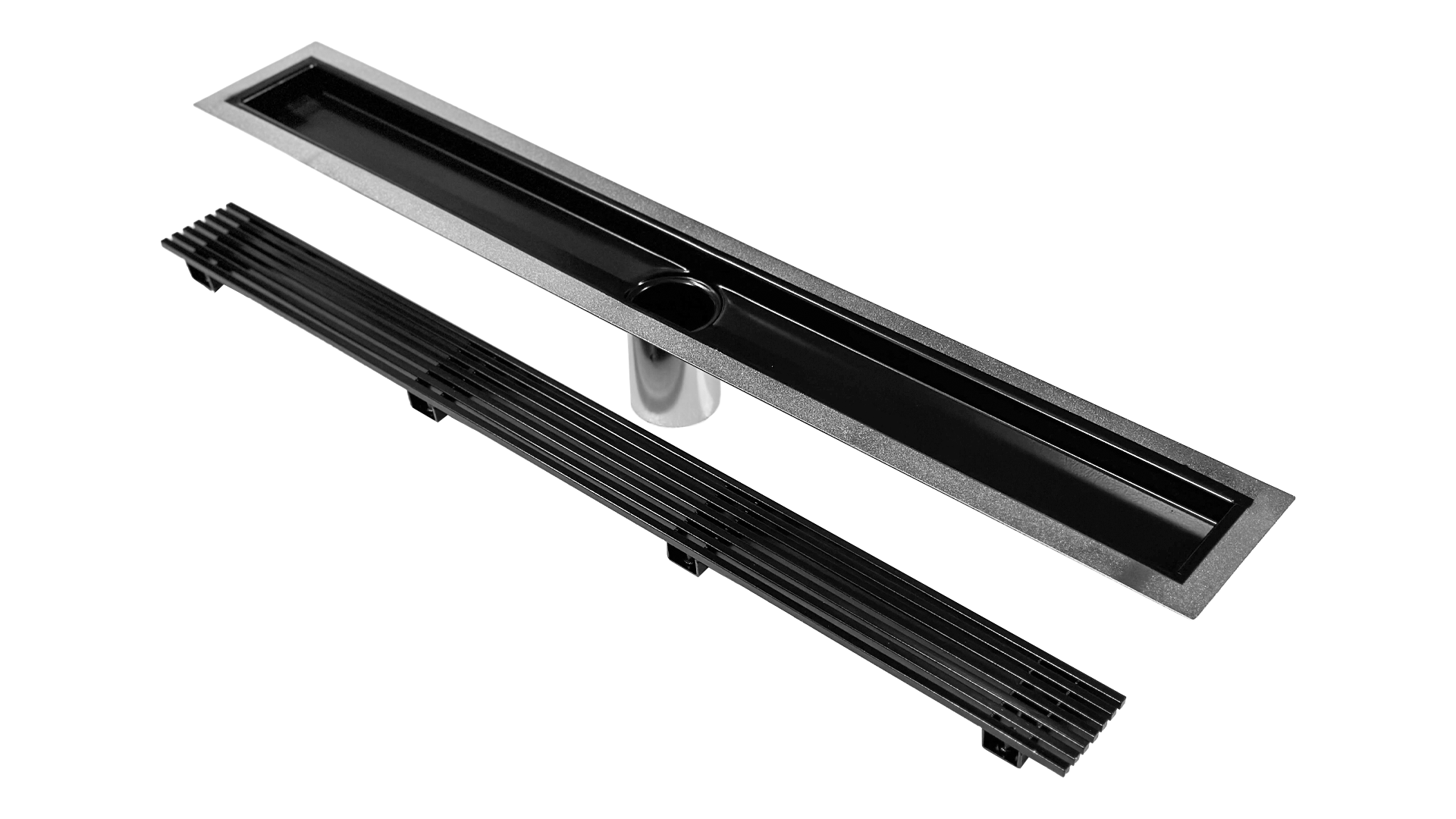

Each Linear Floor Drain package includes the drain body, your selected grate, two strainers, and a grate hook for easy removal and maintenance. The removable grate design allows for quick cleaning without tools, ensuring your drain remains functional and beautiful throughout the life of your shower.

Custom Sizing Available

Don't see your required size? Request a custom dimension using the "Request Custom Size" option to accommodate unique project specifications.
