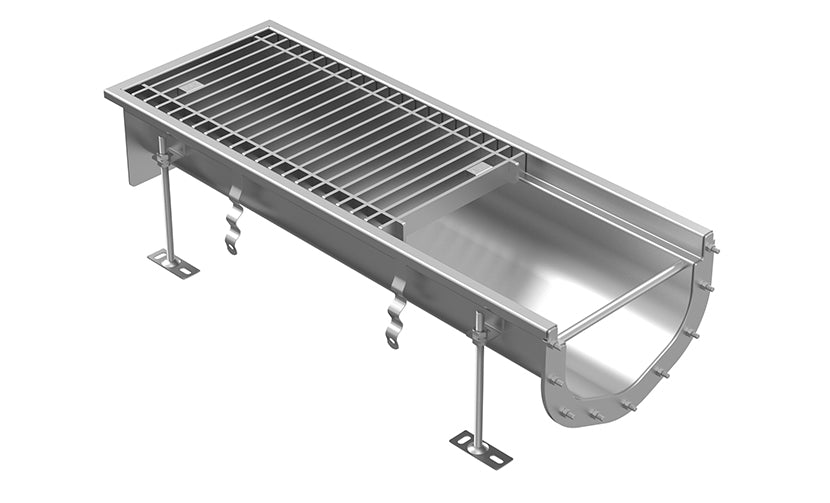

U-Shape Bottom Channe Su (Vertical Outlet)

The U-Shape Bottom Channel SU Vertical Outlet from Drains Unlimited is an advanced trench drainage system engineered for superior fluid management and environmental efficiency. This innovative channel features a specialized U-shaped bottom design that promotes laminar flow-delivering faster fluid transfer, reduced water consumption, and exceptional hygiene performance.

Superior Laminar Flow Design

Unlike traditional rectangular channel bottoms, the U-Shape Bottom Channel SU features advanced geometry that promotes laminar flow. This innovative design accelerates fluid transfer to the outlet, requiring less water to keep the channel clean. The result is environmentally friendly operation without sacrificing drainage efficiency-a win-win for sustainability-conscious facilities.

Reduced Bacterial Accumulation

The U-shaped design minimizes pollution from fluid discharge into the channel. By promoting efficient flow and reducing stagnant areas where bacteria accumulates, the SU channel maintains superior hygiene standards-critical for food processing, pharmaceutical manufacturing, and healthcare facilities where sanitation is non-negotiable.

Flexible Length Options

Available in five convenient lengths:

• 4 feet - Compact applications
• 8 feet - Standard installations
• 10 feet - Larger drainage runs
• 12 feet - Substantial coverage
• 20 feet - Extensive trench systems

All channels come with epoxy fill, polypropylene grate, and one 3-inch vertical outlet for flexible installation options.

Premium Construction Standards

Built from stainless steel AISI 304 (AISI 316 available for special orders) with 0.079-inch (2mm) sheet thickness, the U-Shape Bottom Channel SU delivers exceptional durability and corrosion resistance. All channels feature rounded bottoms with 1% slope for optimal drainage performance.

Professional-Grade Features

The SU channel includes a basket running the entire length for debris collection, maintaining drainage efficiency throughout the system. The 3mm thickness provides structural integrity while hinged grates allow easy cleaning and maintenance access.

Reinforced edges are made from stainless steel or synthetic resin edge reinforcement, meeting EHEDG standards for mechanical and thermal loading protection. Pieces longer than 96" are connected with Neoprene Gaskets (supplied) for seamless integration.

Customization for Unique Needs

The typical initial channel height starts at 3.94" (100mm), but custom dimensions are available. If you need specific sizing, use the "Request Custom Size" button to work with our experienced team.

Ideal Applications

Perfect for food processing facilities, pharmaceutical manufacturing plants, breweries, meat processing operations, dairy facilities, commercial kitchens, and any environment requiring efficient trench drainage with superior hygiene standards.

Competitive Pricing

Priced between $1,855.48 and $5,916.47, depending on length and configuration. Shipping costs are determined by your specific size and quantity selections.

Invest in the U-Shape Bottom Channel SU Vertical Outlet from Drains Unlimited and experience advanced drainage technology that combines efficiency, hygiene, and environmental responsibility. Select your preferred length or request a custom size today.
