V-Shape Bottom Channel Sv (Vertical Outlet)

The V-Shape Bottom Channel SV Vertical Outlet from Drains Unlimited is a professional-grade trench drainage system engineered for surface water collection and efficient sewage management. This specialized channel features a V-shaped bottom design optimized for food processing, beverage production, and chemical industries-delivering reliable performance with vertical outlet configuration.

Specialized for Industrial Applications

The V-Shape Bottom Channel SV is specifically designed for food and chemical industry applications. Perfect for breweries, dairies, meat processing facilities (abattoirs), and chemical manufacturing plants, this channel system collects surface water efficiently and drains it into sewage systems without compromise.

The V-shaped design concentrates fluid flow toward the center outlet, minimizing stagnant areas and promoting rapid drainage-essential for maintaining hygiene standards in food processing and chemical environments.

Flexible Length Options

Available in five convenient lengths:

• 4 feet - Compact applications
• 8 feet - Standard installations
• 10 feet - Larger drainage runs
• 12 feet - Substantial coverage
• 20 feet - Extensive trench systems

All channels come with epoxy fill, polypropylene grate, and one 3-inch vertical outlet for flexible installation options.

Premium Stainless Steel Construction

Built from premium sheet metal with 2mm thickness in AISI 304 or AISI 316 grade stainless steel, the SV channel delivers exceptional durability and corrosion resistance. AISI 316 is available for applications requiring enhanced protection against aggressive chemicals or saline environments.

Professional-Grade Features

Every V-Shape Bottom Channel SV includes a built-in 1% bottom slope as standard, promoting efficient water flow toward the outlet. Custom slope adaptations are available to match specific project requirements.

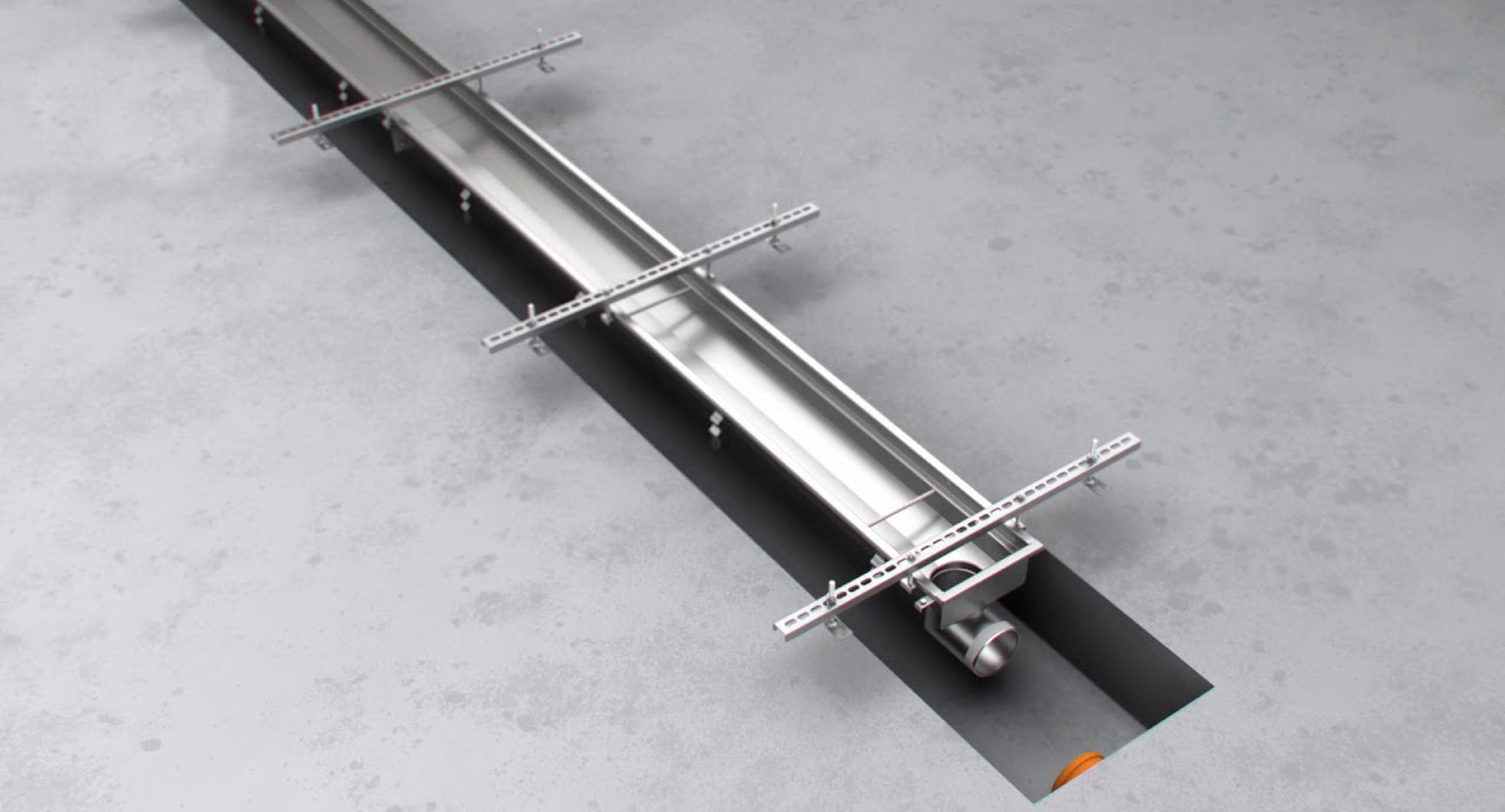

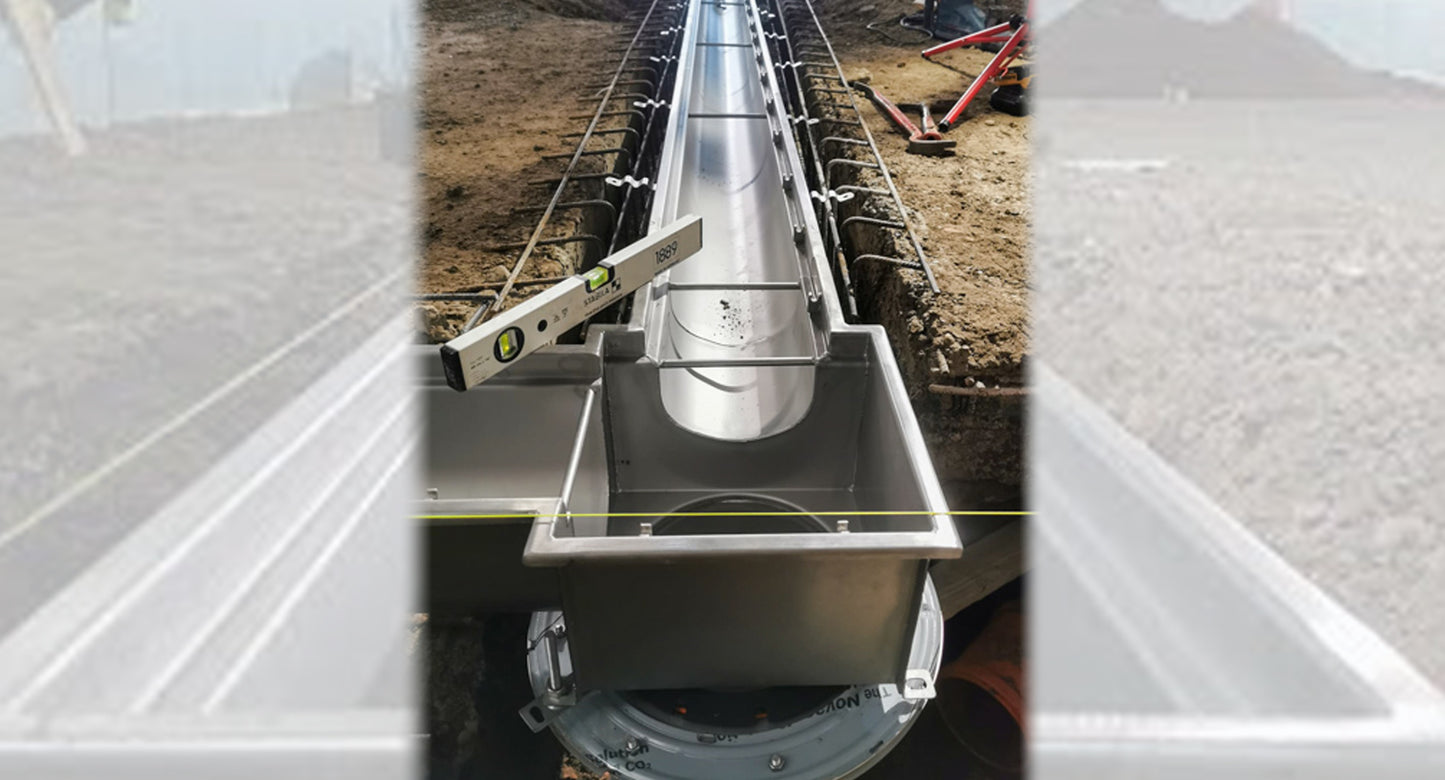

Each channel is equipped with leveling feet and anchoring elements, allowing proper leveling and secure settling in concrete. These features ensure correct installation and prevent shifting or settling issues over time.

Customizable Dimensions and Specifications

Standard channels are manufactured in a wide range of dimensions and shapes. Each system is produced according to drawings prepared through collaboration between investors, designers, technologists, and Drains Unlimited engineers. If you need specific sizing, use the "Request Custom Size" button.

The 1% slope is standard, but custom slope adaptations are available to optimize drainage for your specific installation requirements.

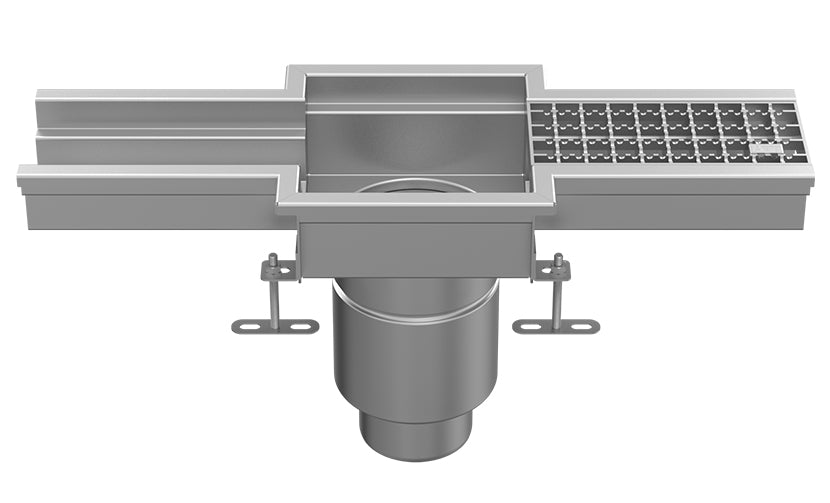

Vertical Outlet Configuration

The vertical outlet design provides flexibility for installations where downward drainage connections are preferred. This configuration accommodates diverse plumbing layouts while maintaining superior performance characteristics and efficient drainage.

Ideal for Food and Chemical Industries

Perfect for breweries, dairies, meat abattoirs, food processing facilities, chemical manufacturing plants, pharmaceutical operations, and any facility requiring professional-grade trench drainage with superior hygiene standards.

Competitive Pricing

Priced between $1,680.64 and $5,363.26, depending on length and configuration. Shipping costs are determined by your specific size and quantity selections.

Invest in the V-Shape Bottom Channel SV Vertical Outlet from Drains Unlimited and experience professional-grade trench drainage engineered for the food and chemical industries. Select your preferred length or request a custom size today.
